There are 2 main types of differential pressure gauges: Mechanical and digital ones.

The differential pressure gauge installation method is the problem encountered by many engineers. Differential pressure gauges are one of the popular products of VCR. Digital differential pressure gauge P2000 is suitable for differential pressure applications with high requirements for pressure monitoring. The set includes LED display, button setting, sound alarm, input, output,etc.

Digital differential pressure gauge introduction

Using high-precision MEMS sensors and digital technology, it can detect positive pressure, negative pressure or differential pressure, and it can completely replace traditional mechanical differential pressure gauges.

Differential pressure gauges are widely-used to measure the pressure of fan and blower, air velocity, pressure drops across orifice plates, liquid levels with bubbler systems, and pressures in fluid amplifier or fluidic systems.

It can be used on medical equipment to monitor blood and respiratory pressure.

Diverse mounting method. It can be flush, surface, or wall-mounted.

Various measuring ranges and units

Accuracy up to 1%FS

Digital differential pressure gauge mounting

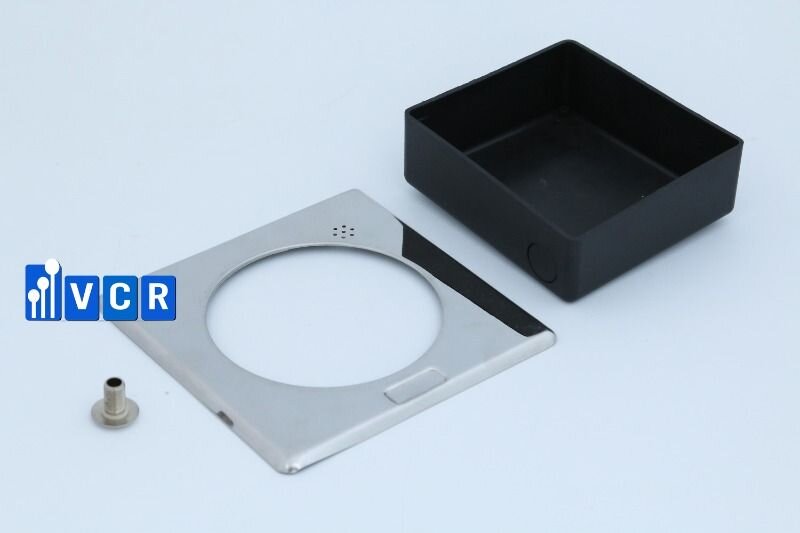

The digital differential pressure gauge mounting box made by inox 304 is commonly used with the gauges.

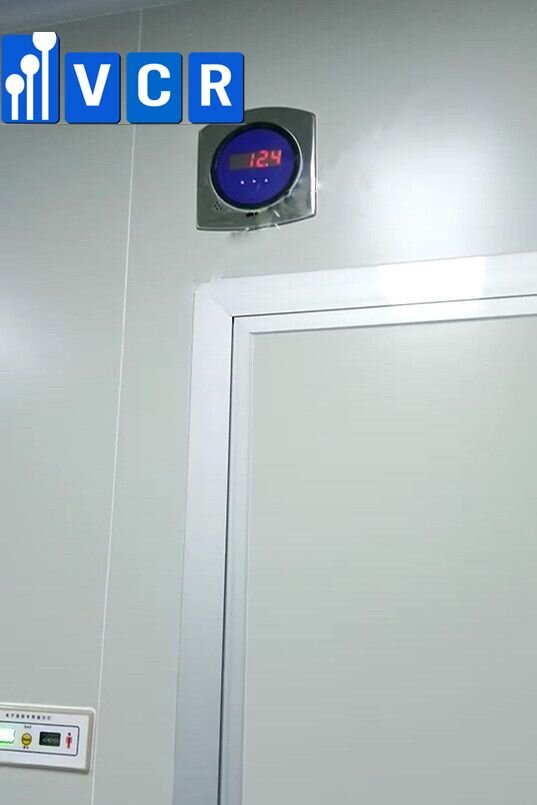

Digital differential pressure gauge in pharmaceutical cleanroom

Pressure connection installation process

  • Positive pressure measurement: Connect the pipe to the hole "high pressure" at the back of the meter and block the other high-pressure hole. Expose two holes "low pressure" to the atmosphere
  • Negative pressure measurement: Connect the pipe to the hole "low pressure" at the back of the meter and block the other low-pressure hole. Expose two holes "high pressure" to the atmosphere
  • Differential pressure measurement: Connect the pipe to the hole "high pressure" at the back of the meter and block the other high-pressure hole. Connect the pipe to the hole "low pressure" at the back of the meter and block the other low-pressure hole.

The above pictures and articles briefly introduce the installation method of digital pressure difference gauges. If you need more product information and technical support, please contact the VCR Cleanroom Equipment
