HEPA Box For Gel Seal Filters Used In Pharmaceutical Cleanroom
HEPA Filter Housing, also called HEPA Box, Air Plenum Box, Air Inlet, is used to holing HEPA filter. For different type of air filters, the filter housing is different. Three types of filter housing are available: HEPA Housing for Gasket Seal HEPA Filter,
HEPA Filter Housing, also called HEPA Box, Air Plenum Box, Air Inlet, is used to holing HEPA filter. For different type of air filters, the filter housing is different. Three types of filter housing are available: HEPA Housing for Gasket Seal HEPA Filter, HEPA Housing for Gel Seal HEPA Filter with gel-filled side channel and HEPA Housing for Gel Seal HEPA Filter with gel-filled top channel.
Description
HEPA Housing for Gel-seal Filter with Side Channel

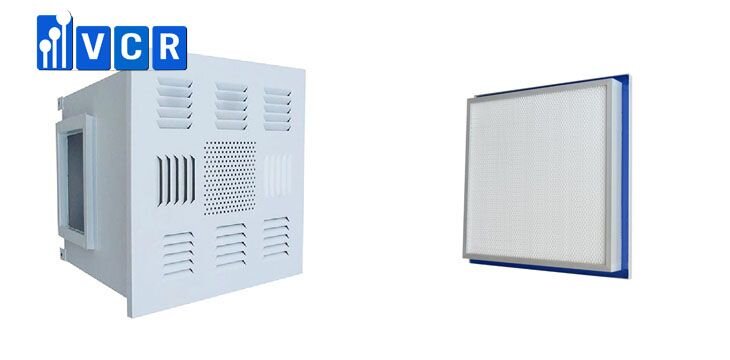

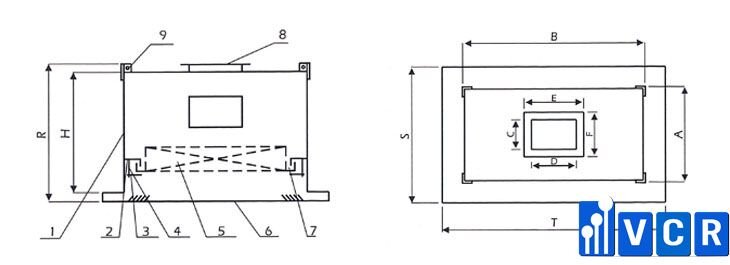

Picture: HEPA Box for Gel Seal HEPA Filter with Gel-filled Side Channel
1. Casing 2. Filter Housing 3. Positing Clam 4. Bolt 5. HEPA Filter 6. Air Diffuser (Square or Swirl Diffuser) 7. Sealing Pad, 8. Duct Flange 9. Perforated Plate 10. Hanging Hole
HEPA Housing for Gel-seal Filter with Top Channel

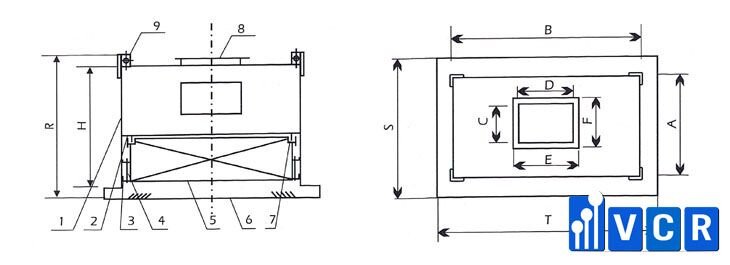

HEPA Box for Gel Seal HEPA Filter with Gel-filled Top Channel
1. Casing 2. Filter Housing 3. Positing Clam 4. Bolt 5. HEPA Filter 6. Air Diffuser (Square or Swirl Diffuser) 7. Sealing Pad, 8. Duct Flange 9. Perforated Plate 10. Hanging Hole
Note: As showed in above photo, the upstream air supply (connected with air duct) is from the side of the housing, Another upstream air supply type is from the top of the housing, that is, there are two air supply types: top-supply housing and side-supply housing. It can be customized according to installation condition.
