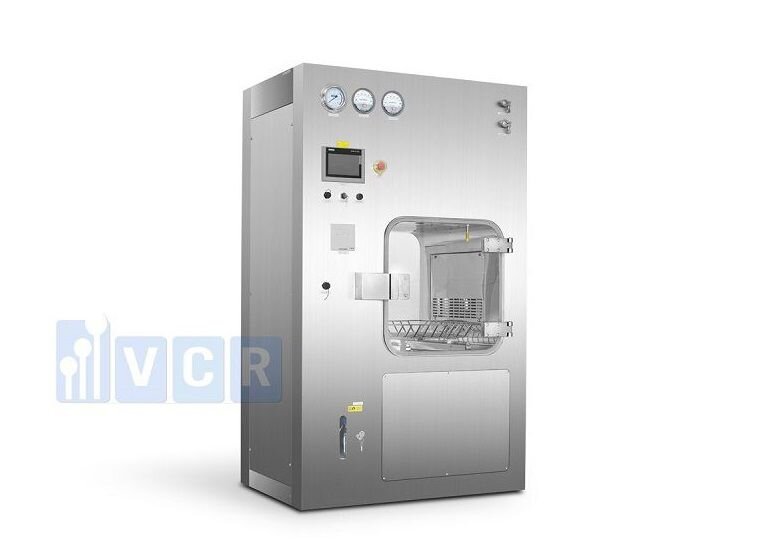

Figure 1: VHP pass box supplied by Vietnam Cleanroom Equipment

1. What is a VHP Pass Box?

It is a machine designed to perform the low-temperature superficial bio-decontamination of materials using vaporized hydrogen peroxide (VHP).

2. What is a VHP Pass Box used for?

It is used to introduce into sterile areas all those materials that cannot be sterilized in an autoclave, typically: heat-sensitive products such as sterile petri-dishes; sterile materials for validation or cleaning activities, such as disinfectants; electronic particle meters; garments, etc. It is also widely used to decontaminate day-to-day production materials that cannot be processed by means of steam sterilization, such as rubber stopper bags and API aluminium containers.

3. How does a VHP Pass Box work?

A built-in VHP generator heats up the hydrogen peroxide, converting it from liquid to vapour. This is then blown into the chamber, creating a lethal environment capable of killing bacteria, viruses and fungi. Each step of the process is fully controlled, guaranteeing perfect performance over time.

4. Why use vaporized H2O2 instead of spray systems?

Ninety percent of worldwide pharmaceutical production plants use vaporized H2O2. There are many reasons why simple spray o micronized systems have not become popular. Vapour is indicated for a wide range of microorganisms and guarantees uniform distribution, reaching the most critical areas of the chamber. It is capable of achieving 6-log reduction on all exposed surfaces, avoiding the potential creation of a Biofilm0. The chemical and physical properties of vaporized hydrogen peroxide (VHP) are compatible with most of the materials used in sterile production areas. Moreover, vapour limits the formation of potentially corrosive liquids, which normally occurs with other spray systems.

5. VCR VHP Pass Box Features

  • Sterilization process <120min to realize multiple sterilization operations one day.
  • Fully automatic operate, menu can be saved and invoked.
  • Emergency Stop.
  • Adopts clean compressing air for vaporization power which can reduce the impact of the pressure differential when taking air from the room.
  • Decomposition filter can effectively reduce the concentration of VHP remain Reduce the impact on environment and personnel.
  • Through up down side to reduce the inspection space.
  • Corner sterilization pass box which will increase factory space utilization ratio, and improve the distribution.
  • Very low hydrogen peroxide consumption.

6. VCR VHP pass box standard size and parameters

Model

Overall size
W×H×D

Work size
W×H×D

Rated capacity
（L）

Working area
clean class

Sterilization
efficacy

Power
（kw）

LATM288

1200×800×2000

600×800×600

288

Class B

6-log

3

LATM512

1400×800×2200

800×800×800

512

LATM1000

1600×1060×2100

1000×1000×1000

1000

LATM1440

1600×1260×2300

1000×1200×1200

1440

Note: specifications listed below table are only for customers' reference. It is mostly designed and manufactured according to customers' URS.
