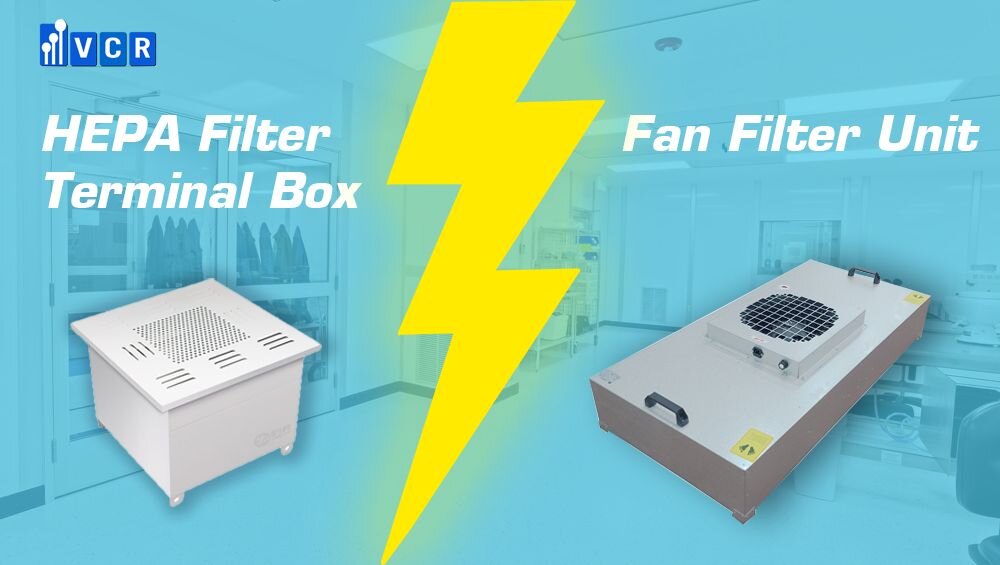

Difference Between Fan Filter Unit (FFU) And HEPA Box
I. Glossary Fan Filter Unit (FFU) is a purification air cleaning equipment composed of a high-efficiency filter (HEPA) or ultra high-efficiency filter (ULPA), a micro fan, and a shell. HEPA box is an ideal terminal filter device of purification air
Table of contents
TABLE OF CONTENT
I. Fan filter unit and HEPA terminal filter box definition
II. Fan filter unit and HEPA box similarities
III. Fan filter unit and HEPA box differences
I. Fan filter unit and HEPA terminal filter box definition
- Fan Filter Unit (FFU) is a purification air cleaning equipment. Read more about FFU here
- HEPA box is an ideal terminal filter device of purification air conditioning systems
II. Fan filter unit and HEPA box similarities
- Both can be widely used in purifying air-conditioning systems in the pharmaceutical, health, electronics, chemical and other industries.
- Both HEPA box and fan filter unit (ffu) are one of the most commonly used air supply filter equipment at the end of the cleanroom.
- The material of the housing is similar, usually cold-rolled steel plate, galvanized plate and stainless steel plate (SUS201, SUS304, SUS316, etc.). The thickness is between 0.7 mm and 1.5 mm. The specific material and thickness can be customized by the customer, but the general thickness is 1.0 mm.
- They are the end air filtration equipment of the purification project and are the key equipment to meet the air cleanliness requirements of the cleanroom.
- HEPA box and FFU are used in cleanrooms of class 1,000, 10,000, and 100,000.
III. Fan filter unit and HEPA box differences
1. Structure
- Fan filter unit (FFU) is composed of HEPA filter or ULPA filter, a micro fan, and housing.
- HEPA box includes a static pressure box, a diffuser, and HEPA filter. The interface with the air pipe can be top connected or side connected.
2. Use environment
- Fan filter unit can be used in cleanrooms of class 100 and class 10, while HEPA box is generally not used in these cleanrooms.
3. Working principle
- FFU is a kind of purification filter equipment with power device, which can be used alone or connected to the air pipe. It is composed of air supply box, flange, air deflector, fan and HEPA filter.
- HEPA box is terminal equipment of the centralized air supply method. It is a non-powered device and needs to be equipped with air ducts. The 4-piece set includes static pressure box, flange, HEPA filter, air outlet diffuser.
