Powder Coating and Anodizing - Comparing Processes, Properties, and Applications

Two popular methods that are often compared and carefully considered are Powder Coating and Anodizing. Many people, when hearing these terms, may get confused: Is anodizing just another type of “color paint” for aluminum? Or can powder coating completely replace anodizing because of its wide range of colors? In reality, these are two entirely different technologies.

This distinction leads to unique advantages and disadvantages in terms of durability, corrosion resistance, coating thickness, aesthetics, and cost. Therefore, understanding the differences between powder coating and anodizing helps businesses, design engineers, contractors, and even consumers make the right choice for each specific application.

In this article, VCR will explore in detail and clearly distinguish between powder coating and anodizing - two surface technologies that may seem similar at first glance but are fundamentally different.

Overview of Powder Coating

What is Powder Coating?

Powder coating is a method of applying a protective and decorative finish to metal surfaces using electrostatically charged powder. Unlike traditional solvent-based liquid paints, powder coatings use no solvents. Instead, positively charged powder particles are sprayed onto a grounded (negatively charged or neutral but earthed) metal surface. Due to electrostatic attraction, the particles adhere evenly and firmly. The coated product is then cured in an oven at around 180-200°C, where the powder melts and fuses into a durable, uniform coating.

This principle ensures excellent adhesion without dripping, sagging, or uneven coloring as seen with conventional paints. The finished surface is typically smooth and consistent, available in glossy or matte finishes depending on the powder used.

Development history: Powder coating was first developed in Europe in the 1950s and has since become a standard in many industries - from aluminum windows and doors, electrical cabinets, motorcycles, and metal furniture to household appliances and heavy industrial equipment. Its popularity stems from key advantages:

• Environmentally friendly (no solvents, no VOC emissions).
• High efficiency, with overspray easily recovered and reused.
• Coating durability superior to traditional painting methods.

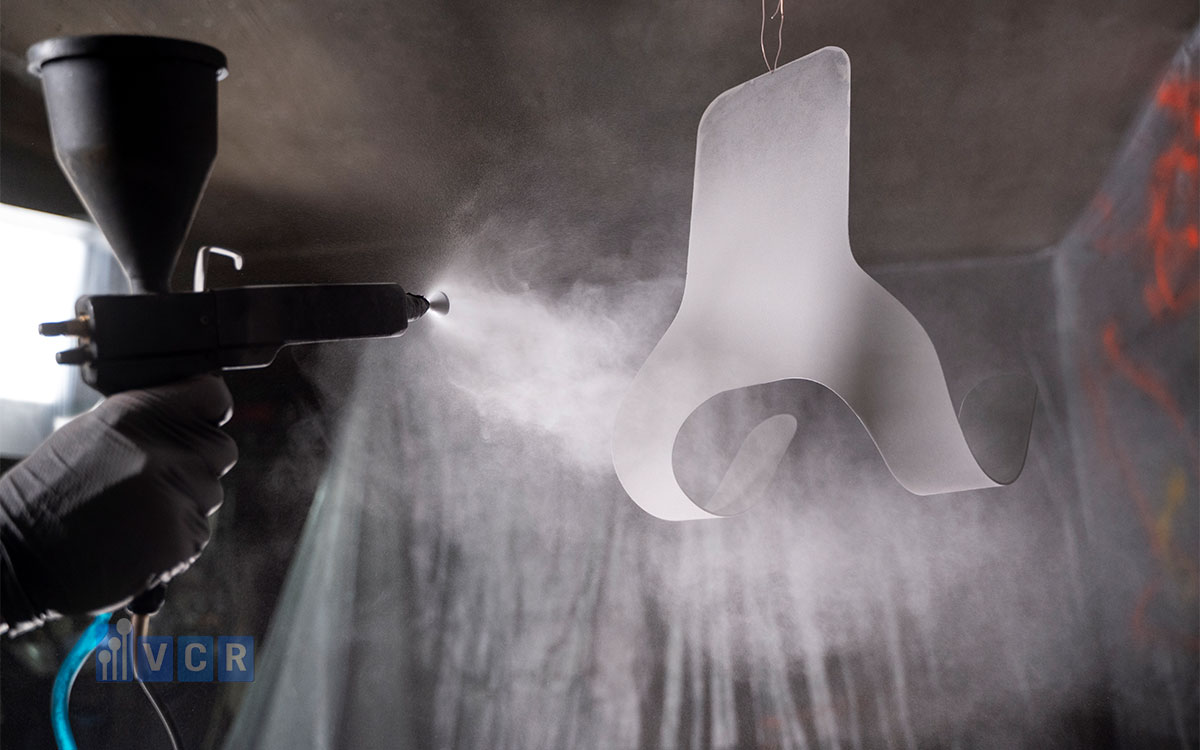

Powder Coating Process

For optimum quality, powder coating must follow a strict process:

Step 1: Surface pre-treatment

Remove grease, oil, and dirt with alkaline or mild acid solutions.

Remove rust and oxides to ensure a completely clean surface.

Rinse with tap water and demineralized (DI) water to eliminate salts and residual ions.

Modern lines may add a phosphate or nano-ceramic layer to enhance adhesion.

Note: This is the most critical step - poor preparation can cause peeling or blistering of the coating after a short period.

Step 2: Electrostatic powder spraying

A specialized spray gun charges the powder positively.

The grounded workpiece creates an electrostatic attraction, ensuring even coverage.

The applied coating typically ranges from 60-120 µm in thickness.

Step 3: Curing

The coated product is baked in an oven at 180-200°C.

Powder melts, bonds, and hardens into a strong, uniform film.

Once cooled, the surface is smooth, durable, and resistant to scratches and peeling.

Key equipment and technology:

• Water and chemical treatment tanks
• Spray booth (manual or robotic automated)
• Electrostatic spray guns
• Industrial curing oven

Advantages of Powder Coating

Powder coating is widely chosen for its outstanding benefits:

• Wide color range: hundreds of options - glossy, matte, textured, wood grain, metallic, etc.
• Thicker, more durable coating: typically 60-120 µm, 2-3 times thicker than conventional paint.
• Excellent corrosion resistance: protects against rust, especially when combined with phosphate pre-treatment.
• Eco-friendly: contains no volatile organic compounds (VOCs), reducing air pollution.
• Cost efficiency: overspray can be recycled up to 95%, reducing material waste.
• Uniform finish: smooth surface with no streaking, cracking, or bubbling.

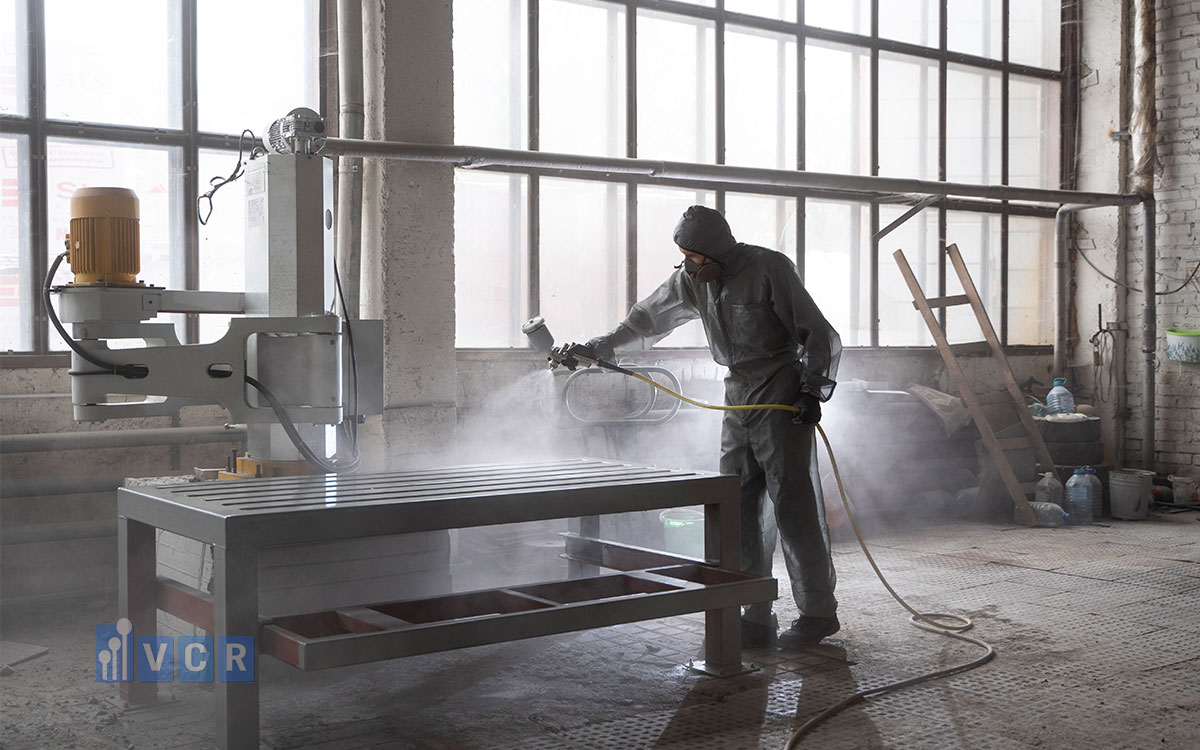

Limitations of Powder Coating

Despite its advantages, powder coating also has some drawbacks:

• Chipping under strong impact: While highly adhesive, the coating may crack or flake off under heavy mechanical force.
• Hides natural metal grain: Thick coating covers the original look of aluminum, steel, or copper - making it unsuitable for applications requiring a metallic finish.
• High initial investment: requires a full production line (pre-treatment tanks, spray booth, spray guns, curing oven), which can be costly.
• Difficult spot repair: Local touch-ups rarely match the original finish; often the entire part needs recoating.

In summary: Powder coating is an efficient, durable, and cost-effective solution for industrial production. However, when compared with anodizing, clear differences emerge in terms of coating nature, wear resistance, and premium aesthetics - topics that will be analyzed in the next sections.

Anodizing, Electrostatic painting and E-coating

Overview of Anodizing

What is Anodizing?

Anodizing is a surface treatment process that strengthens and protects metals through electrolytic oxidation. Unlike powder coating, which applies an additional layer from the outside, anodizing directly transforms the metal’s surface into a highly durable oxide layer that is firmly bonded and becomes an integral part of the material.

Working principle: When aluminum (or aluminum alloys, titanium, or magnesium) is immersed in an electrolytic solution and connected as the positive electrode (anode) in an electric circuit, the surface undergoes oxidation under direct current. The resulting oxide layer has a porous, ultra-fine structure with excellent adhesion. This layer can then be dyed and sealed to enhance durability.

Key characteristic: Anodizing is most effective on aluminum and aluminum alloys (and less commonly applied to titanium or magnesium). Therefore, it is closely associated with high-end aluminum applications - ranging from phone and laptop casings to aircraft components, automotive parts, and architectural finishes.

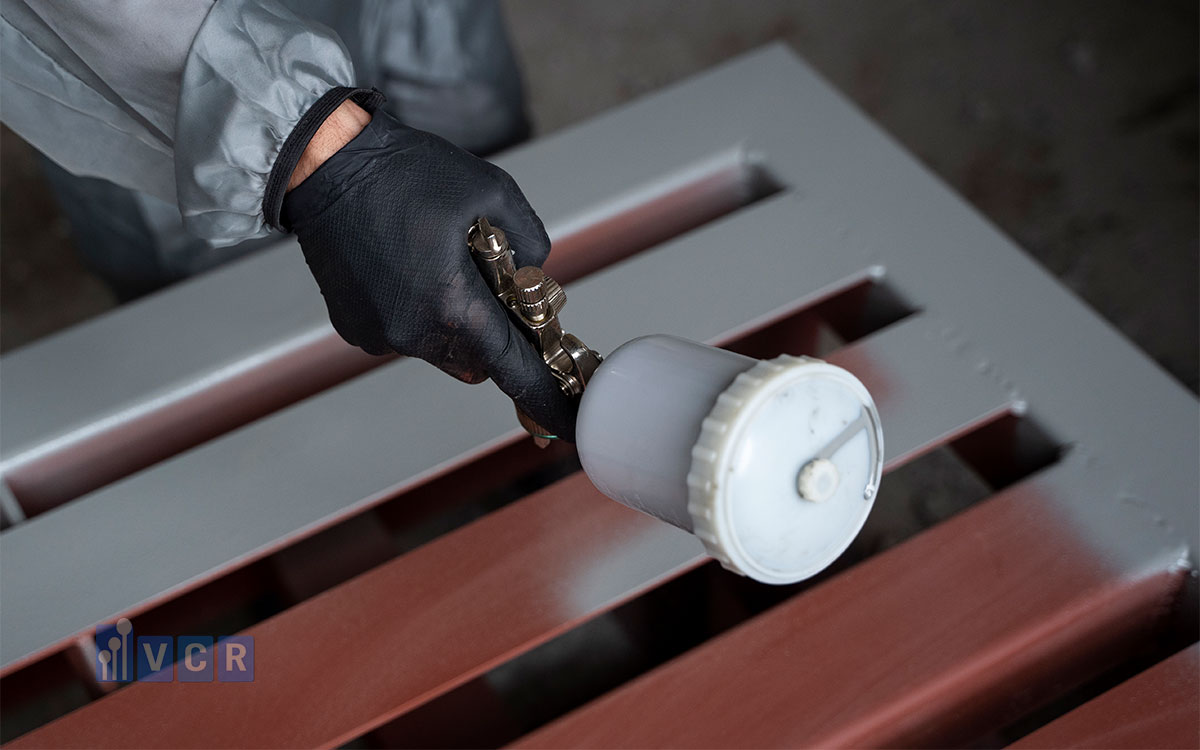

Anodizing Process

A standard anodizing process typically consists of three main steps:

Step 1: Surface cleaning

Aluminum is degreased and cleaned of dirt with alkaline or mild acidic solutions.

This removes impurities, ensuring a clean and uniform surface.

In many cases, aluminum is mechanically or chemically polished before anodizing to achieve a smooth finish.

Step 2: Electrolytic oxidation

The aluminum piece is immersed in an electrolytic bath containing acid (most commonly sulfuric acid; oxalic or phosphoric acids are used for specific applications).

The aluminum acts as the anode (positive pole), while the cathode is usually lead or stainless steel.

Under direct current, the aluminum surface oxidizes to form a porous, hard aluminum oxide (Al₂O₃) layer.

The thickness of the anodized layer depends on voltage, time, and solution type (typically 5-25 µm, up to 70 µm for hard anodizing).

Step 3: Coloring and sealing

The freshly formed oxide layer is porous and easily absorbs dyes. Products can be colored black, gray, champagne gold, blue, or red.

After dyeing, the oxide layer is sealed with hot water or nickel/cobalt salt solutions, which close the pores and make the surface more resistant to corrosion and wear.

Result: A durable, uniform oxide layer that bonds with the base metal, providing both protection and aesthetic appeal.

Advantages of Anodizing

Compared to powder coating or other surface coatings, anodizing offers unique benefits:

• Exceptional wear resistance: The oxide layer is extremely hard (close to corundum, ~9/10 on the Mohs scale), providing excellent scratch and abrasion resistance.
• Outstanding corrosion resistance: The bonded oxide layer prevents further oxidation, protecting aluminum in humid, salty, or mildly chemical environments.
• Preserves metallic texture: Unlike powder coating, anodizing maintains the natural grain of aluminum, giving a modern, premium appearance - one reason why products like iPhones, MacBooks, and medical devices favor anodizing.
• Safe and eco-friendly: The anodized layer contains no harmful chemicals, does not peel, and is environmentally safe. It is also food- and medical-grade, making it suitable for kitchenware, water bottles, and medical equipment.
• High color durability: Because colors are absorbed into the oxide layer and sealed, anodized products retain their appearance and resist fading under sunlight exposure.

Limitations of Anodizing

Despite its advantages, anodizing has several drawbacks:

• Limited color range: Far less variety compared to powder coating; colors are usually metallic shades like silver, gray, black, champagne gold, or basic blue and red.
• Higher production costs: Requires precise electrolysis equipment, chemical baths, and voltage control, leading to higher setup and operating expenses than powder coating.
• Material restrictions: Applicable mainly to aluminum, aluminum alloys, and a few other metals like titanium and magnesium. It cannot be applied to steel, copper, or zinc.
• Difficult local repair: Deep scratches are hard to fix locally - re-anodizing typically requires processing the entire surface.

In summary: Anodizing is an advanced surface treatment technology that delivers a highly durable, corrosion- and wear-resistant protective layer with a premium metallic appearance. However, its higher cost and material limitations make it most suitable for high-end aluminum products in electronics, aerospace, automotive, and medical industries.

Comparison Between Powder Coating and Anodizing

After understanding what powder coating and anodizing are, the next step is to compare the two technologies directly across multiple criteria. This helps businesses, engineers, and end users choose the most suitable solution for their products.

Nature of the Coating

Powder Coating: An external coating. A layer of powder is applied to the metal surface, then melted to form a protective paint film. This layer is separate from the base metal, acting like an “armor” covering the surface.

Anodizing: An internal coating. The aluminum oxide (Al₂O₃) layer forms directly on the metal surface through electrolytic oxidation. In other words, anodizing transforms the metal’s own surface, bonding with it and making it nearly impossible to peel off.

Quick comparison: Powder coating is like “dressing” the metal, while anodizing is like “strengthening” the metal’s own skin.

Manufacturing Process

Powder Coating:

• Surface pre-treatment with water, chemicals, DI water.
• Electrostatic spraying of powder paint (charged particles).
• Curing in an oven at 180-200°C.
• Requires spray booths, curing ovens, water treatment, and powder recovery systems.

Anodizing:

• Surface cleaning of aluminum.
• Electrolysis in acid solutions (sulfuric, oxalic, phosphoric).
• Formation of porous aluminum oxide, optional coloring.
• Sealing of pores with hot water or nickel salts.
• Requires electrolytic tanks, high-power DC supply, and strict pH/temperature control.

Observation: Powder coating is shorter and easier to automate for mass production, while anodizing is more sophisticated and requires precise chemical and electrical control.

Technical Properties

Summary: Anodizing excels in wear resistance and preserving metallic appearance, while powder coating excels in color diversity and coating thickness.

Applications

Powder Coating:

• Aluminum doors, fences, railings, electrical cabinets
• Motorcycles, bicycles, appliances, office equipment
• Heavy industry and construction requiring varied colors and cost efficiency

Anodizing:

• Phone and laptop casings (iPhone, MacBook)
• Aerospace, automotive, high-performance bicycle components
• Medical instruments, kitchenware, premium-grade products

Conclusion: Powder coating suits mass-market products requiring diverse aesthetics; anodizing suits premium products demanding superior durability and high-end finishes.

Cost and Service Life

Initial investment:

• Powder coating: Requires spray booths and curing ovens (costs range from hundreds of millions to several billion VND depending on scale). Powder material is moderately priced.
• Anodizing: Requires electrolytic tanks, DC power supply, chemical treatment systems. Investment is equivalent or higher, with higher operating costs for chemical control.

Product lifespan:

• Powder coating: 5-10 years outdoors (depending on weather), 10-15 years indoors.
• Anodizing: 20-30 years if properly processed, with minimal degradation.

Practical Applications

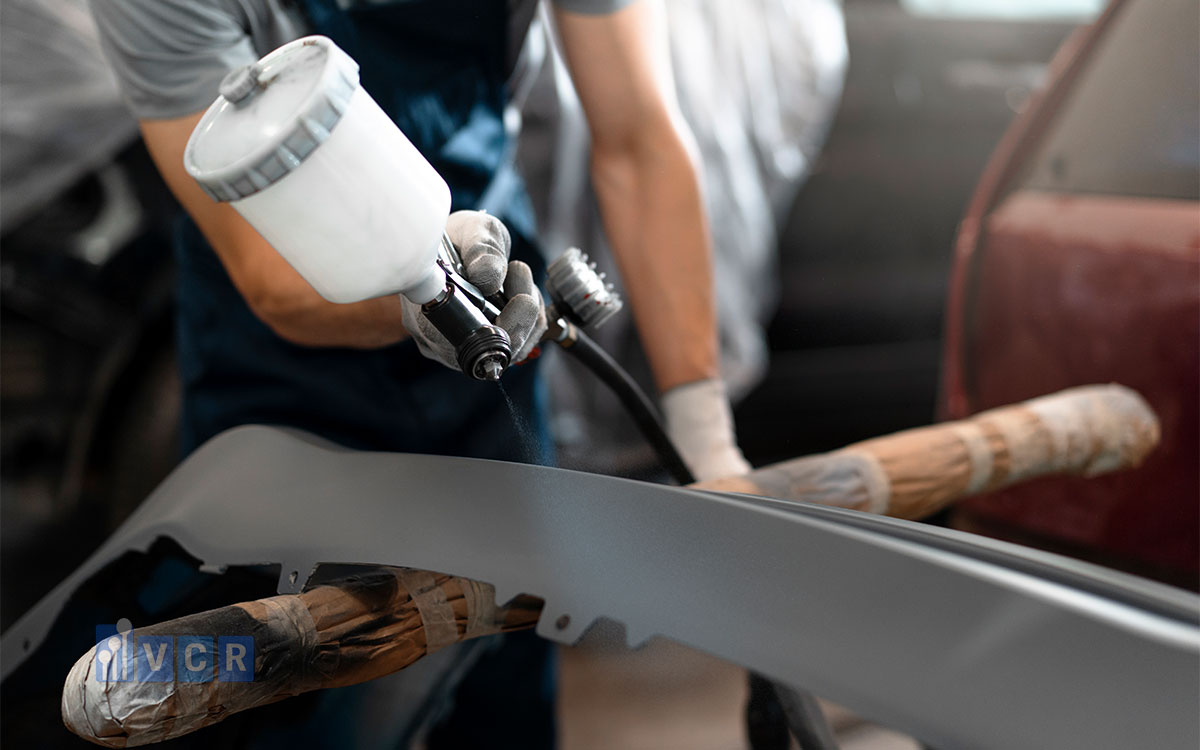

Applications of Powder Coating

With its outstanding advantages in color diversity, thick coating, and good corrosion resistance, powder coating is widely applied across many industries, especially construction and mechanical engineering:

• Aluminum doors, fences, railings: Powder coating provides a wide variety of colors that match modern architecture, from wood-like finishes and metallic gloss to neutral tones. The thick coating resists sunlight, rain, and outdoor environments.
• Office and household furniture: Chairs, tables, and cabinets made of steel or aluminum are powder coated for harmonious colors, scratch resistance, and increased durability.
• Motorcycles and vehicles: Frames, wheels, and metal components of motorcycles are powder coated for protection and vibrant finishes.
• Steel, iron, and heavy industrial products: Mechanical parts, electrical cabinets, and factory steel frames use powder coating thanks to its reasonable cost, ease of mass production, and higher durability compared to traditional paint.

Powder coating is best suited for products that require diverse aesthetics, high-volume production, and cost efficiency.

Applications of Anodizing

Unlike powder coating, anodizing is concentrated mainly on high-end aluminum products where durability, elegance, and superior wear resistance are critical:

• Electronics (iPhone, MacBook, tablets, laptops): Anodized aluminum casings are iconic for premium design. Apple and other major brands choose anodizing because it preserves the metallic texture, resists scratches, and is both lightweight and durable.
• Aerospace and automotive components: Aircraft, automotive, and high-performance bicycle parts demand high strength and abrasion resistance. Anodizing provides these with its extremely hard oxide layer and long service life.
• Premium household goods: Anodized aluminum cookware, water bottles, kettles, and cutlery are food-safe, non-peeling, and free of harmful chemical leaching.
• Architectural finishes: Aluminum façades, sunshades, and premium signage use anodizing for long-lasting, elegant, and weather-resistant surfaces.

Anodizing has become the standard for premium aluminum products where customers are willing to pay extra for outstanding quality and aesthetics.

Current Market Trends

Market trends show a clear distinction:

• Mass-market products → Powder Coating

For goods requiring affordability, color diversity, and mass production - such as aluminum doors, fences, furniture, and steel frames - powder coating is the most practical choice. It is easy to scale industrially and responds quickly to market demand.

• Premium, long-lasting products → Anodizing

For products requiring high-end aesthetics, long-term durability, and superior wear resistance - such as smartphones, laptops, sports bicycles, and aerospace components - anodizing is almost indispensable. Despite higher costs, the long-term value and branding advantage make anodizing the preferred option for leading manufacturers.

Overall trend: Powder coating dominates in mainstream consumer products, while anodizing is the standard for premium-grade items. These two technologies do not exclude each other but coexist to serve different market needs.

FAQ - Frequently Asked Questions

1. Is powder coating more durable than conventional paint?

Yes. Powder coating is much more durable than traditional oil-based or water-based paints. The coating layer (60-120 µm) adheres strongly, does not drip, and is less likely to peel. Indoors, powder coating can last 10-15 years; outdoors, typically 5-10 years - significantly longer than conventional paint (2-3 years).

2. Can anodizing replace powder coating?

Not entirely. Anodizing and powder coating are two different technologies:

• Anodizing is suitable for aluminum and premium products requiring high durability and wear resistance.
• Powder coating is suitable for steel, iron, aluminum, and large-scale industrial products where color variety is needed.

Therefore, anodizing cannot replace powder coating in all cases; it is best for aluminum and high-end applications.

3. Does powder coating fade?

Yes, but much slower than conventional paint. Powder coating can still fade if exposed continuously to harsh sunlight, acid rain, or marine environments. However, thanks to its thick, durable coating, fading happens very slowly. Some premium powder coatings can retain color for 7-10 years outdoors.

4. Can anodizing offer as many colors as powder coating?

No. Anodizing only produces a limited range of colors such as silver, black, gray, champagne gold, blue, and red. In contrast, powder coating offers hundreds of colors, including effects like wood grain, metallic, gloss, matte, and textured finishes. For extensive color variety, powder coating clearly outperforms anodizing.

5. How does the cost of anodizing compare to powder coating?

Anodizing is more expensive due to its complex electrolytic process, which requires precise chemical and voltage control. Powder coating is more affordable, making it better for mass production. However, anodizing has a much longer lifespan, which means lower maintenance costs over time.
